PQWT GT500A 500m Detection Depth Groundwater Detector with 0.001mV Resolution and 10.1 inch HD Touch LCD

Large Image : PQWT GT500A 500m Detection Depth Groundwater Detector with 0.001mV Resolution and 10.1 inch HD Touch LCD

Product Details:

Place of Origin:	China
Brand Name:	PQWT
Model Number:	GT500A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	5 working days
Payment Terms:	T/T,Paypal

Contact Now

PQWT GT500A 500m Detection Depth Groundwater Detector with 0.001mV Resolution and 10.1 inch HD Touch LCD

Description

Usage:

Borehole Drilling, Geological Prospecting

Application:

Underground Water Detection

Detection Depth:

150m/300m/500m

Min. Resolution:

0.001mV

Highlight:

PQWT GT500A Groundwater Detector Machine

ODM Groundwater Detector Machine

Automatic Underground Water Finder

PQWT GT500A Groundwater Detector Machine 500m Automatic Underground Water Finder

The PQWT-GT500A is a high-quality automatic underground water detector designed to locate groundwater sources before borehole drilling. With detection depths of 150m, 300m, and 500m, this instrument provides accurate water source identification for drilling operations.

As part of the PQWT-GT Series, this multi-channel prospecting instrument features simultaneous data acquisition across multiple channels and frequencies, eliminating time difference influences from natural electric field sources. This technology significantly improves accuracy and work efficiency in groundwater detection.

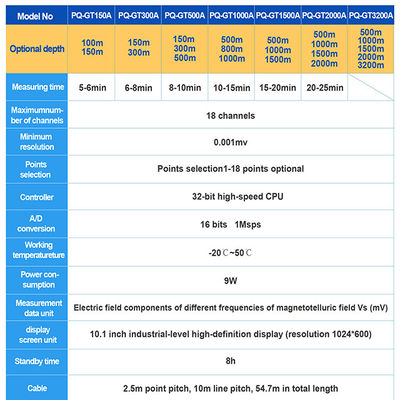

Product Specifications

Item	Value
Warranty	2 years
Type	PWQT-GT New Underground Water Detector
Customized support	OEM
Place of Origin	China
Brand Name	PQWT
Model Number	PQWT-GT Series
Product name	PQWT-GT Series Under Ground Water Detector
Application	Underground Water Detection
Usage	Borehole drilling, Mineral detection, Geological survey
Power supply	Rechargeable Lithium Battery
Display	10.1 inch HD Touch LCD
Max. number of Channels	18 channels
Min. resolution	0.001mV
Electrode	22pcs
Host Weight	1.95kg

Detection Capabilities

The PQWT-GT500A primarily identifies geological structures like fractures and cracks with 90% accuracy in locating aquifers. While it doesn't directly calculate water quantity from maps, local drilled well data can provide reference points for water quantity estimation within the same water zone.

For water density assessment, users can analyze the low-value area size (blue or light blue zones) between yellow areas (typically rock formations) to evaluate water density quality when combined with local geological knowledge.

Key Features

Auxiliary analysis: One-click analysis of abnormal areas
Automatic mapping: Generates curve maps, profile maps, and 3D renderings automatically
Stable operation: Collects 18 data points with single wiring setup
Supplementary measurement: Analyzes geological structure extensions with front/rear survey line measurements
Data storage: Stores over 999 survey lines including maps and 3D renderings for comprehensive reporting

Product Images
