|Model:||PQWT-L30 Water Leak Detector System||Main Use:||Bathroom Pipe Leak Detector|
|Equip The Sensor:||1 Pcs Square Sensor||Work Scene:||Somebody' S Home Have Pipe Leak|
|Keyword:||Water Leak Filtration Detector||Imput:||2w|
|Stay Time:||12-15 Hours||Frequency:||1-10000hz|
L30 Acoustic Leak Detection System,
2W Acoustic Leak Detection System,
OEM Pipe Mic Leak Detection
How to identify if the Pipe leaking
Some simple ways to teach you to judge:
1: Reduced pressure in the water pipe
2: There is a clear watermark on the floor or wall
3: A distinct sound of water can be heard
4: Sudden increase in water bills

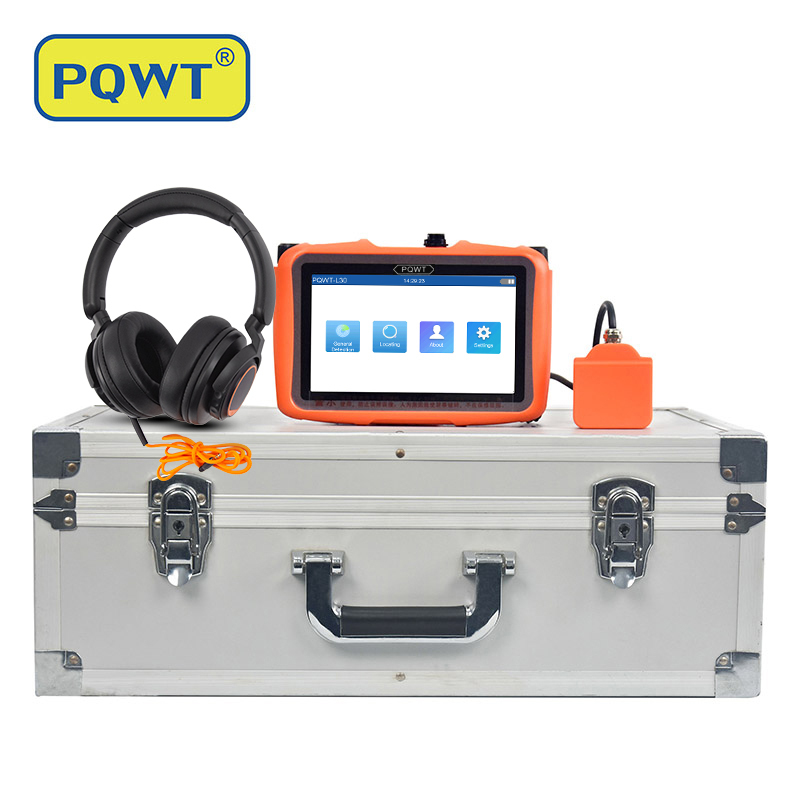

PQWT-L30 water leak detector microphone collects leaking sound signal through the square sensor and show on the host machine, it will show as an visible spectrum and single bar through the host machine. then the water leak sound will also be output to the headphones with the host machine. the device working principle is combinate the "listening to abnormal noise" and "observing abnormal signal bar" to find the leakage point, welcome to enquiry :+8618817127266
Assemble the instrument
1. Select appropriate sensor according to different indoor detection environment. Triangular sensor is suitable for most indoor environments such as floor detection. Square sensor is suitable for narrow spaces such as walls and cabinets;
2. Connect the strap to the host machine;
3. Connect the air plug of the sensor cable to the host machine air plug. There are white small dot on the air plug, align them and insert.
4. Connect the earphone to the host machine by earphone line
1.2.1 The use of dot-matrix LCD display with backlight, vertical 7 light beam, convenient observation at night.
1.2.2 Ad hoc bandwidth The two-band change not only takes care of the richness of the vibration energy distribution in the audiometry process, but also makes it more elaborate in frequency analysis.
1.2.3 Special storage of 9 channels, which can store the measured values of 7-band signals and 7 measurement points respectively.
1.2.4 The design of the special engineering plastic chassis and the corresponding panel operation are very simple and neat, to facilitate a simple operation method can obtain a clear and wide range of information, so that leak detection and measurement work is convenient and easy.
Hunan Puqi Water environment Institute is a professional institution in China, we research and development and sales of pipe water leak detector, Automatic pressure pipe leak analyzer, thermal imager camera, pipe blockage test, underground water detector. we have exports more than 16 years and sales 100 countires and get good feedback from our users.
There are detailed operating information in the U disk in the device box, don't worry
Our device can be used for at least 4/5 years under normal operation and storage;
If the device is simply damaged, we recommend that your company's technicians/you repair it at the local hardware store more conveniently. We provide simple accessories and maintenance suggestions;
If the device is seriously damaged, it can be sent back to the supplier (manufacturer) for inspection and repair
