Product Details:
|
| Model: | PQWT-GX900 | Measure Depth: | 8m |
|---|---|---|---|
| Working Modes: | Valley Method, Peak Method, Wide Peak Method And Peak Arrow Method | Receiver Operating Frequency: | Radio, 50Hz, 512Hz, 1KHz, 33KHz, 83KHz |
| Operating Temperature: | - 20 ℃ ~ + 50 ℃ | Battery Type: | 7.4V Lithium Battery |
| Overall Dimensions: | 595mm×146mm×300mm | Operating Mode: | Direct Connection, Induction And Clamp Are Automatically Switched |
| Highlight: | Depth 8M Underground Pipe Locators,PQWT GX900 Underground Pipe Locators,Intelligent underground pipe detector |
||
PQWT-GX900 Depth 8 Meter Multi Frequency Underground Pipe Power Cable Locator With Depth Display Cable Detector
The GX900 receiver is used to locate underground pipelines, cables, buried depth measurements of underground pipelines, and current measurements in tubes. A variety of frequencies and operating modes are available to meet a variety of environmental and various pipeline detection needs
The GX900 transmitter is used to apply the signal of the selected specific frequency to the target pipeline, and the signal can be applied by direct connection method and induction method.The transmitter has the characteristics of high power, long measuring distance, automatic impedance matching and automatic measurement of pipeline grounding resistance
Operating frequency: when the signal frequency of the transmitter is selected, the corresponding triangle indicator light will be lit. the selectable frequencies are 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz and 83KHz ( the frequency quantity is also different according to different specifications and models. refer to the manufacturer's product specifications for details )

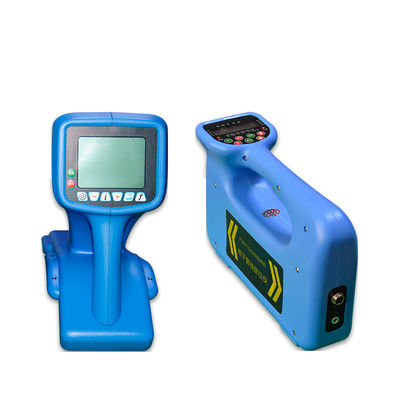

Products picture:
Company Introduction
Hunan Puqi water environment institute Co,Ltd is a professional institution in China who engaged in the R & D, manufacturing and sales of pipe water leak detector, leakage automatic analyzer, underground pipe locator, Pipeline blockage detector, thermal imager camera, geophysical prospecting underground water detector.
