Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor

Certification
China Hunan Puqi Water Environment Institute Co.Ltd. certification
China Hunan Puqi Water Environment Institute Co.Ltd. certification
I'm Online Chat Now

Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor

Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor

Description
Model NO.: PQWT-L2000 Frequency Range: 1-10000Hz
Volume: 10 Levels Adjustable Gain: 10 Levels Adjustable
Sensor: Middle Sensor Model: Pqwt-L2000
Charting Hours: 7-8 Hours Operating Mode: General Detection; Locating Mode
Charger: 5V 2A USB Working Hours: 15 Hours
Input Power: Around 2W Transport Package: Flight Case And Strong Carton
Specification: 56x22x42cm Of One Carton Trademark: PQWT
Origin: Changsha, China HS Code: 9031809090
Supply Ability: 1000 Set /Month Type: Pipe Leakage Detector
Usage: Pipe Leakage Detector Installation Mode: Portable
Certification: CE, ISO Application: Home, Industry, Special Equipment, Outdoor Pipeline
Display: 7 Inch HD Digital Touch LCD Screen Samples: US$ 1508/Set 1 Set(Min.Order) | Request Sample
Customization: Available | Customized Request
Highlight:

Outdoor Water Pipe Leak Sensor

,

L2000 Water Pipe Leak Sensor

,

5m Pipeline Leak Detector

Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor

Product Description

PQWT-L series is the newly updated and multi-functional water leak detector, it is applied to different detecting leakage of outdoor water pipe, fire pipe, heating system, indoor water pipe, and underground heating floor pipe. By collecting and analyzing leakage signal, it solves the problem of pressure pipe water leak.

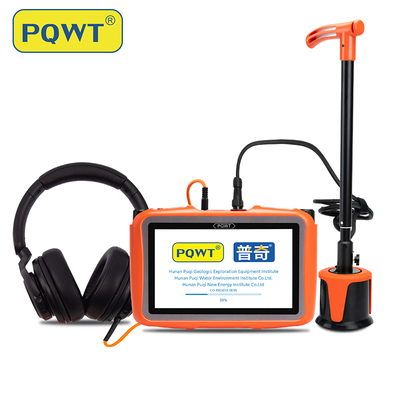

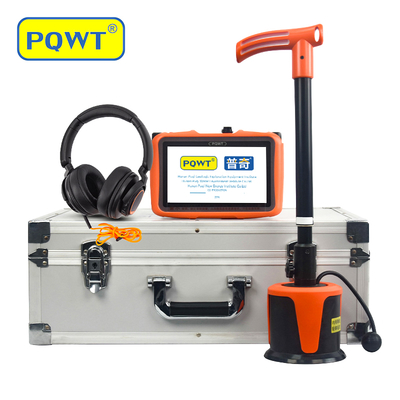

The major components of the instrument include: Host Machine, Noise Reduction headphone, Middle Sensor(for outdoor normal environment),Telescopic Pole (for connecting sensors), Sound pole (for inserting soft soil, lawn)


Instrument operation

General Detection which is mainly used to check the pipeline water leakage in large areas.
Locating which is mainly used to locate the leak points in suspected leakage areas.

Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor 0


Technical Parameters

Model PQWT-L2000 PQWT-L3000 PQWT-L4000 PQWT-L5000 PQWT-L6000 PQWT-L7000
Measuring area Outdoor Pipeline Indoor+outdoor pipeline Indoor+outdoor pipeline Indoor+outdoor pipeline Outdoor Pipeline Indoor+outdoor pipeline
Sensor Middle Sensor Middle +Square Sensor Middle + Triangular Sensor Middle+ Triangular +Square Sensor Middle+ Large Sensor Large+Middle+ Triangular +Square Sensor
Frequency Range 1-10000HZ
Gain 10 levels adjustable
Volume 10 levels adjustable
Operating Mode General Detection;  Locating Mode
Display 7 Inch HD digital touch LCD screen
Charting hours 7-8 hours
Working hours 15 hours
Charger 5V 2A USB
Languages English, French, Russian, Spanish, Turkish, Italian, Arabic
Input Power Around 2w
Working temperature  ( -20ºC~ +50ºC )
Weight (Host Machine) 0.7Kg
 Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor 1
Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor

Packing & Shipping
   Packing

one set in flight case and Carton
Carton size (LxWxH):56x22x42cm
G.W: 9kgs
Shipment terms Shipping way: DHL/ FEDEX / TNT/UPS/EMS
Delivery time: 1-2days after receipt of payment
Shipping time: 5 working days express.
                       5-7 working days by air.
                       23-25 working days by sea
Payment methods T/T , PayPal , ESCROW
Payment terms sample order: 100% payment before production
bulk order: prepay 30-50% deposit before production, the balance should be paid before shipment

FAQ

Is it difficult to operate?

---The device is simple to operate and can be used without any experience.
There are related U disks with detailed information in the box.


Guide for After-sale Service

> 2-year guarantee-if using of the product is influenced due to quality problem, you may receive guarantee of the product within 2 year after the date of purchase;

> Lifetime maintenance-lifetime maintenance service is implemented on all factory series products. We offer maintenance of machine which surpasses the maintenance period or has manual damage with material and lab


Case show
Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor
Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor
Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor

Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor
Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor
Outdoor Water Pipe Leak Sensor Pqwt-L2000 Depth 5m Middle Sensor

Company

Hunan Puqi Water Environment Institute Co.Ltd. is the professional institution in China who engaged in the R & D,manufacturing and selling of Geophysical Prospecting Instruments,Pipeline leak detector, Underground metal detector and Borehole inspection equipment. More than 200 staffs,including 16 senior engineers, 49 intermediate engineers.
