PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels

PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels

PQWT GT1000A Geological Exploration Equipment

ODM Geological Exploration Equipment

Long Range Water Detector 18 Channels

Place of Origin:

China

Brand Name:

PQWT

Model Number:

GT1000A

Contact Us
Request A Quote
Product Details
Product Name:
PQWT GT1000A Deep Depth Underground Water Finder
GT1000A Detection Depth:
500m/800m/1000m
Channels:
18 Channels Of PQWT GT1000A
Keyword:
Deep Underground Water Detector
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Contact Us
Delivery Time
5 working days
Payment Terms
T/T, Paypal
Product Description

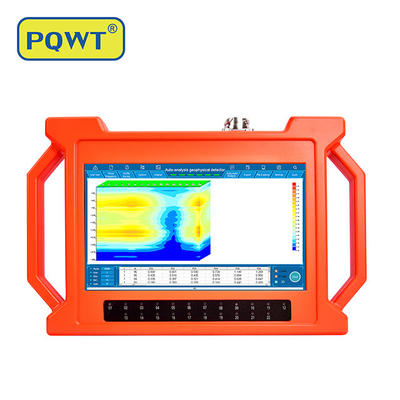

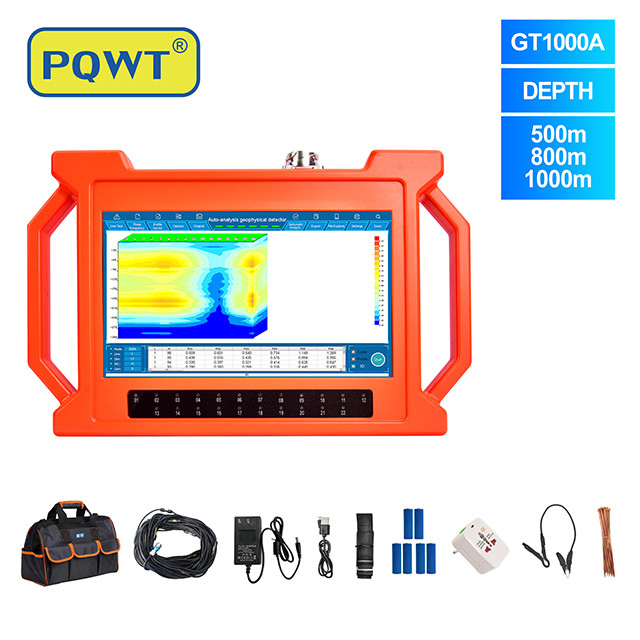

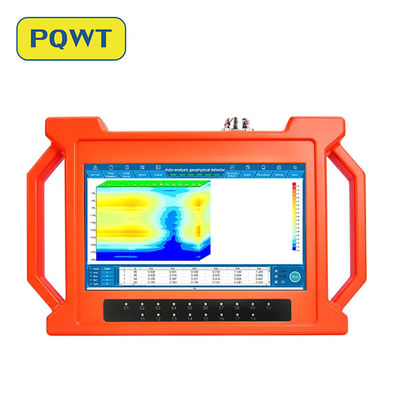

PQWT GT1000A Deep Geological Exploration Equipment Long Range 18 Channels Water Detector

Product Description
Find the underground water groundwater source first before your borehole drilling!
PQWT GT1000A detection depth is 500m/800m/1000m, very suitable for deep underground water detection.

The PQWT-GT Series is new generation of multi-channel automatic geological prospecting instrument, this instrument can process the collected data, automatically draw curve map, profile map, and 3D renderings in real time, and automatically analyze abnormal areas, so as to provide scientific basis for analyzing geological structures quickly and effectively.

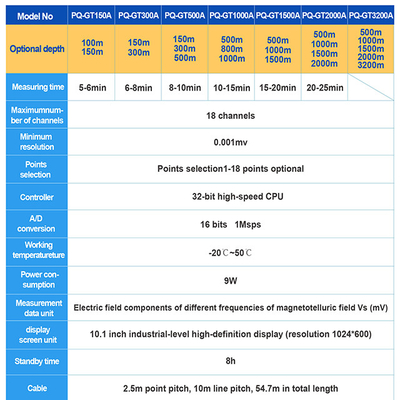

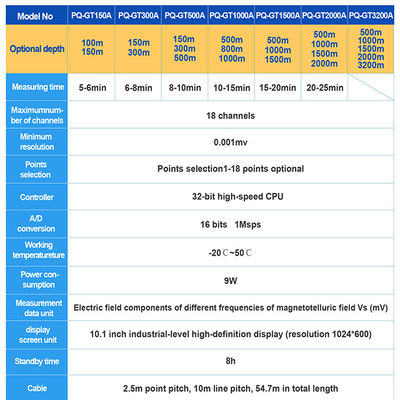

Specification
item value
Warranty 2 years
Type PWQT-GT New Underground Water Detector
Customized support OEM
Place of Origin China
Brand Name PQWT
Model Number PQWT-GT Series
Product name PQWT-GT Series Under Ground Water Detector
Application Underground Water Detection
Warranty 2 years
Usage Borehole drilling, Mineral detection, Geological survey
Power supply Rechargeable Lithium Battery
Display 10.1 inch HD Touch LCD
Max. number of Channels 18 channels
Min. resolution 0.001mV
Electrode 22pcs
Host Weight 1.95kg


How to proceed if the ground is concave or convex or in the form of a slope?

It is usually recommended to measure the perpendicular line to the slope. For ordinary lowlands and highlands, the impact is not effect if the drop of two electrode height does not exceed 1.5 meters. Because the measuring points are measured vertically downwards, it is only necessary to subtract the corresponding drop.


Product Advantages
Auxiliary analysis: The instrument analyzes the abnormal area with one click.
Automatic mapping: Automatically draw curve map, profile map, and 3D renderings.
Stable and reliable: Collect 18 points data with one-time wiring.
Supplementary measurement function: The extension of geological structure can be analyzed by making supplementary measurement in front and rear of the survey line.
Data storage: It can store curve map, profile map, and 3D renderings of more than 999 survey lines to facilitate the production of geophysical exploration reports.

PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels 0PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels 1PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels 2PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels 3PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels 4PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels 5PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels 6PQWT GT1000A Geological Exploration Equipment Long Range Water Detector 18 Channels 7
