PQWT-GT2000A Under Ground Deep Water Well Drilling 2000m 3D Auto Map Analysis Fast Detect Ground Water Detector

Large Image : PQWT-GT2000A Under Ground Deep Water Well Drilling 2000m 3D Auto Map Analysis Fast Detect Ground Water Detector

Product Details:

Place of Origin:	China
Brand Name:	PQWT
Model Number:	PQWT-GT2000A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	5 working days
Payment Terms:	T/T,Paypal

Contact Now

PQWT-GT2000A Under Ground Deep Water Well Drilling 2000m 3D Auto Map Analysis Fast Detect Ground Water Detector

Description

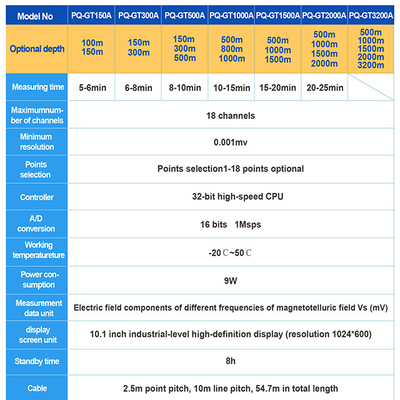

Product Name:	PQWT-GT2000A Ground Water Detector	Map Profile:	3D Mapping
Channels:	18 Channels Water Detector	Color:	Orange (customized Accept)
Warranty:	2 Years	Keyword:	World Best Underground Water Detector
Highlight:	OEM 3D Underground Water Detector , PQWT GT 3D Underground Water Detector , fresh result long range water detector

The PQWT-GT Series is the 8th-generation of multi-channel prospecting instrument newly developed by our institute based on the principle of natural electric field frequency selection method. It is widely used in underground water sources, geological structures, mine veins, mine tunnels, cavities, karst caves, ant holes, mined-out areas, dam pipe surge, landslides and other fields.

This series of instruments integrates 5 independent invention patents of PQWT, including data acquisition system, data processing system, automatic mapping system, auxiliary analysis system and circuit system. It realizes the simultaneous data acquisition of multi-channel and multi-frequency, completely solves the influence of unstable factors caused by the time difference of the natural electric field source, and greatly improves the accuracy and work efficiency. The instrument can process the collected data, automatically draw curve map, profile map, and 3D renderings in real time, and automatically analyze abnormal areas, so as to provide scientific basis for analyzing geological structures quickly and effectively.

Product Features Auxiliary analysis: The instrument analyzes the abnormal area with one click. Automatic mapping: Automatically draw curve map, profile map, and 3D renderings. Stable and reliable: Collect 18 points data with one-time wiring. Supplementary measurement function: The extension of geological structure can be analyzed by making supplementary measurement in front and rear of the survey line. Data storage: It can store curve map, profile map, and 3D renderings of more than 999 survey lines to facilitate the production of geophysical exploration reports.
