Place of Origin:
China
Brand Name:
PQWT
Certification:
CE
Model Number:
PQWT-TC150
PQWT-TC150 Portable Multi-function Underground Water Detector 150M
Introduction to Instrument
PQWT-TC150.150M underground water detector
The Instrument called as (Natural Electric Field Frequency Selection System) geophysical instrument, shortly known as frequency system.
Instrument working on the principle of electrical difference of natural earth magnetic field, the several different frequencies of electromagnetic field changes is the law to study the underground field material changes to solve the Geological problems.
The measurement data is Self-potential, and the unit is millivolt.
Main Features
| 1. High Speed and High Efficiency Complete more than 8000 meters profile measurement in one day to realize geological abnormality in different depth, the prospecting speed and efficiency are improved about 10 times more than traditional resistivity method. |
| 2. Easy to Carry Without the heavy power supply, it uses low-frequency signals in earth natural electric field as the signal source, and the complete set weight is less than 2kg so easy to carry |
| 3. Simple Operation Equipment is automatically controlled by the micro PC. You can learn its operation in 10 minutes. It will take 0.5h for persons without prospecting experience to finish training. |
|
4. Good Accuracy, High Accuracy It gains high stability and abnormity curves matching with that of traditional geo-electrical equipment in lots of field survey. |
| 5. Anti-interference Ability It has advanced anti-jamming technology and multiple anti-jamming designs. You can observe abnormity curves result with good repetition even in the weak signal area, city, high electric jamming area and working area with other exterior interference via frequency selector and digital processing. |
| 6.A key to mapping The detector is fully automatic form mapping after sampling data no need the computer drawing mapping |
Technical Parameters
| Model No. | Depth | Accuracy | Channel | Frequency | LCD | PS | Other |
| PQWT-TC150 |
150 meter |
0.001mv | 4 |
Single, Triple 33 Frequency |
Industrial 7-inch HD touchscreen | DC12V 4000mAh Built-in Battery |
1.Automatic noise reduction, super anti-jamming. 2.User-friendly interactive interface, high-speed CPU control, the menu prompts. 3.Automatic measurement,s storage of data, drawing curves. 4. The data will be saved automatically after the shutdown 5.It can store 999 single band, tri-band and multi-frequency measurement data. 6. The data could be imported into the computer directly for Charting. 7.Using rechargeable batteries, Electrode detection, power monitoring function. |
| PQWT-TC300 |
300 meter |
0.001mv | 6 |
Single, Triple, 40 Frequency |
Industrial 7-inch HD touchscreen |
DC12V 4000mAh |
|
| PQWT-TC500 |
500 meter |
0.001mv | 8 |
Single, Triple, 56 Frequency |
Industrial 7-inch HD touchscreen | DC12V 4000mAh Built-in Battery |

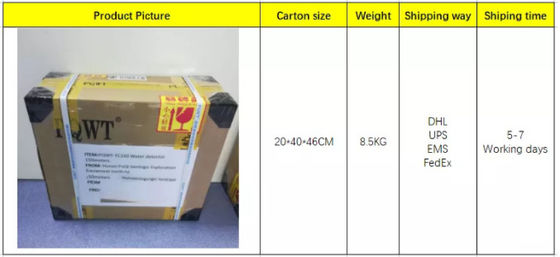

Product Picture
