Pipe Underground Water Leak Detector Wireless Sensors 10m Bluetooth

Latest Underground Wireless Sensors Pipe Leak Detector Gas Detection Model Location Leak And Pipeline

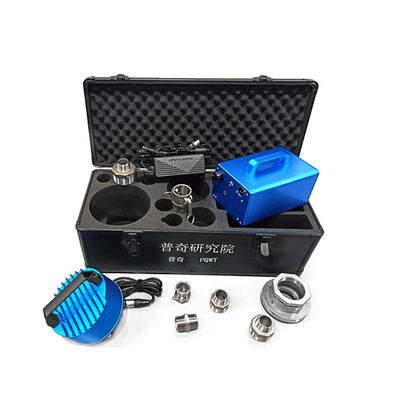

PQWT-BT30 New design Multi-function wireless leak detector (Acoustic +Gas +pipeline locator) for 0-9 meters

Introduction

PQ - BT series wireless multifunctional leak detector is a new generation of multifunctional wireless leak detector independently researched and developed by our institute, specifically for detecting pressure pipeline leakage and pipeline direction. This series of instruments can effectively and conveniently solve the leakage problem of external pressure pipeline by collecting and analyzing the sound and signal of leakage or the gas of the pipeline leak. By installing a sound device at the pipeline interface, it can also accurately locate the location and direction of underground metal and non-metal pipelines.

Operating Principle

Acoustic Detection Function: By using the sensor to collect the sound and display signal of pipeline leakage, the collected signal is sent to the host wireless, after the host signal is processed, it is displayed on the host interface in the form of signal columns and values. At the same time, the sound will also be sent to the wireless headset through the host , Through the combination of "listening" and "seeing" two ways to analyze and determine the leaking point.

Gas Detection Function: By injecting hydrogen and nitrogen mixed gas into the pipeline, use a dedicated hydrogen sensor to collect and analyze the leaked hydrogen, detect the leaked hydrogen content, display it on the host interface in the form of signal columns and values, and observe the size changes of the hydrogen content. When the measured position signal column is the highest and the value is the largest, it can be judged that the position is a pipeline leak.

Pipeline Locating function: When the direction of the pipeline is unknown, a sounding device can be installed at the pipeline interface. The device generates a specific sound wave signal mixed with multiple frequencies in the pipeline. The signal is transmitted horizontally along the pipeline in both directions and vertically transmitted to the ground, using the host and the sensor collect this specific sound wave signal on the ground and analyze its strength to accurately locate the orientation and direction of underground metal and non-metal pipelines.

Company Profile

   Hunan Puqi Water Environment Institute Co., Ltd. is the professional institution in China who engaged in the R & D, manufacturing and sales of pipe water leak detector, leakage automatic analyser.

   PQWT has established long term cooperation relationship with many scientific research institutes in Germany, US, Australia, Hong Kong and other countries and regions. Number of geological data laboratories has been established at multiple places in china, using our own unique software to carry out long term data collection, analysis and detection for different geologic structure, and set up the differential database of different geologic structure area.
