PQWT-GT3200A NEW Deep Depth Portable Underground Water Detection Instrument Water Detector Groundwater

Large Image : PQWT-GT3200A NEW Deep Depth Portable Underground Water Detection Instrument Water Detector Groundwater

Product Details:

Place of Origin:	China
Brand Name:	PQWT
Model Number:	PQWT-GT3200A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	5 working days
Payment Terms:	T/T,Paypal

Contact Now

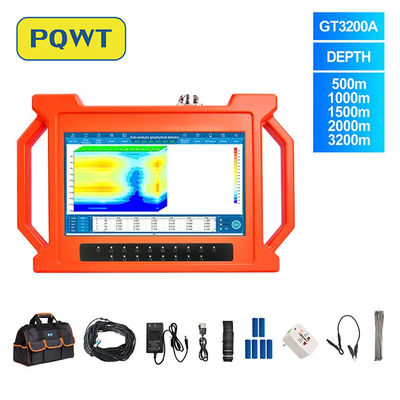

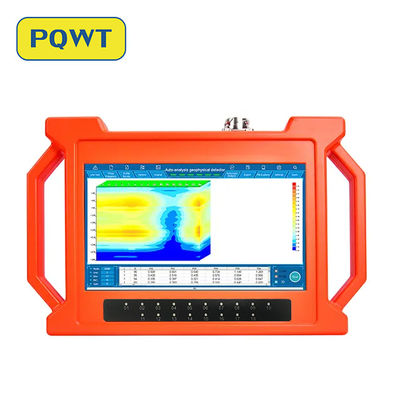

PQWT-GT3200A NEW Deep Depth Portable Underground Water Detection Instrument Water Detector Groundwater

Description

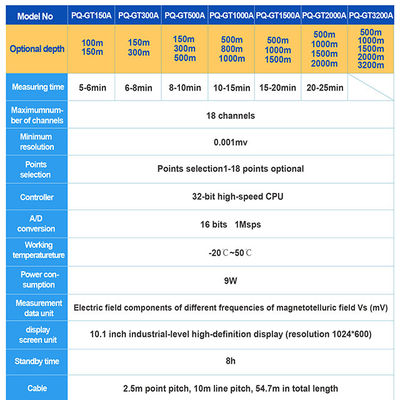

Product Name:	PQWT-GT3200A Ground Water Detector	Map Profile:	3D Mapping
Channels:	18 Channels Water Detector	Color:	Orange (customized Accept)
Warranty:	2 Years	Keyword:	World Best Underground Water Detector
Highlight:	Portable Underground Water Detection Instrument , Deep Depth Underground Water Detection Instrument , Groundwater Underground Water Detection Instrument

The PQWT-GT Series is the 8th-generation of multi-channel prospecting instrument newly developed by our institute based on the principle of natural electric field frequency selection method. It is widely used in underground water sources, geological structures, mine veins, mine tunnels, cavities, karst caves, ant holes, mined-out areas, dam pipe surge, landslides and other fields.

This series of instruments integrates 5 independent invention patents of PQWT, including data acquisition system, data processing system, automatic mapping system, auxiliary analysis system and circuit system. It realizes the simultaneous data acquisition of multi-channel and multi-frequency, completely solves the influence of unstable factors caused by the time difference of the natural electric field source, and greatly improves the accuracy and work efficiency. The instrument can process the collected data, automatically draw curve map, profile map, and 3D renderings in real time, and automatically analyze abnormal areas, so as to provide scientific basis for analyzing geological structures quickly and effectively.

Product Features Auxiliary analysis: The instrument analyzes the abnormal area with one click. Automatic mapping: Automatically draw curve map, profile map, and 3D renderings. Stable and reliable: Collect 18 points data with one-time wiring. Supplementary measurement function: The extension of geological structure can be analyzed by making supplementary measurement in front and rear of the survey line. Data storage: It can store curve map, profile map, and 3D renderings of more than 999 survey lines to facilitate the production of geophysical exploration reports.
