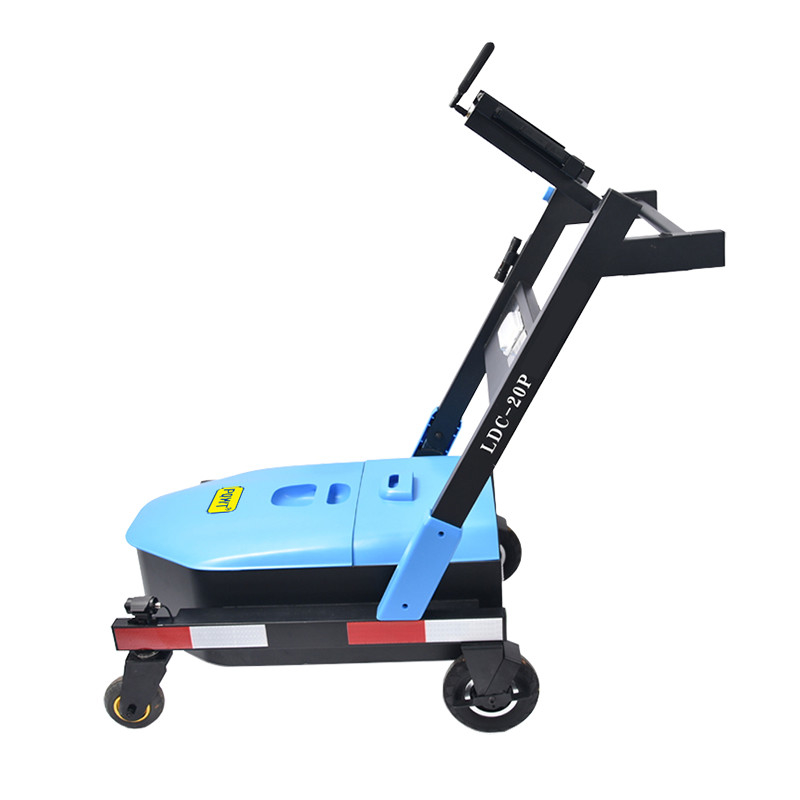

PQWT-LDC 10P 9m Depth Deep Water Leak Detector Trolley For Outdoor Pipeline Water Leak Detector

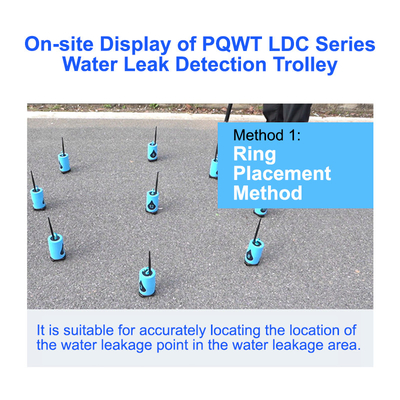

PQWT-LDC Series Water Leakage Detection Trolley is a high-precision and high-efficiency pressure pipe network leakage detection equipment newly developed by Puqi Institute. It conducts rapid water leakage detection and inspection work for large areas of water supply, heating, fire and other pipelines under the condition of known or unknown pipeline distribution. The equipment uses B-P algorithm technology, equipped with 20 wireless monitoring sensors to collect data from different areas, and transmits the data to the central controller through relays in a wireless way for efficient and rapid analysis, so as to locate water leakage points automatically. At the same time, It can also live record in real-time and all collected sound can be saved.These functions make the inspection work more convenient. Puqi LDC Series Water Leakage Detection Trolley has been authorized by 13 invention patents and utility model patents. (Declaration:patented product, counterfeiting not allowed.)
LDC 10P is a multifunctional leak detector offering three functions in one: prelocation, pinpointing and correlation. The clever combination of these processes in one system allows you to confidently locate the leak regardless of the ambient conditions. With just a few finger strokes, you can quickly and easily switch between the various applications.
The user interface of the LDC 10P is clearly and logically laid out. There are many extra functions available for complex location scenarios.
The high quality piezo microphones with frequency response optimised especially for leak detection and the digital signal processing offer outstanding acoustic properties. Thanks to the excellent sound quality and minimisation of sound interference, you can reliably identify and locate leaks even if the sound intensity of the leak is weak or there is significant ambient noise.
At the touch of a button the LDC 10P will apply tailored filters to the current noises and will automatically select the appropriate frequency ranges. Alternatively, you can set manual filter limits according to your individual hearing and select frequency ranges which accentuate the leak noise. This allows you to concentrate fully on the leak without any sound interference.
In addition, you have the option of recording leak noises with the integrated audio player and comparing them with each other. You can use these recordings for training or demonstration purposes or to create a noise database, allowing you to better evaluate leak noises on site.
All-in-one device: prelocation, pinpointing and correlation. The clever combination of these methods in one system allows you to confidently locate the exact source of the leak regardless of the ambient conditions.
The LDC 10P is recommended for all users undertaking professional leak detection because it can handle any everyday location scenario. It can easily measure different pipe sections, pipe materials, diameters and pipe lengths.
With acoustic leak detection, the current sound intensity is displayed as a graph and as a numeric value on the large and clear 5.7 inch receiver display. Alongside, you can see the previous values for better comparison as well as the current frequency analysis of the noise.
The sophisticated firmware of the LDC 10P means that the measurement sequence is almost fully automatic. Once the pipeline data has been entered and the measurement started, all other steps are performed without the intervention of the operator. The measured noises are constantly analysed in the background and the optimal filter settings selected.
The LDC 10P guides the user through the various applications with instructions. This means that even users with less experience and occasional users can use the device with confidence.
The LDC 10P independently optimises the measuring results by automatically selecting appropriate filters – without the user having to intervene. However, the filters can also be set manually.
One special feature of the correlator is its results-oriented, user-friendly on-screen display of the measuring results. Concrete information about the position of the leak is highlighted, instead of having to interpret complex curves. The quality of the calculations shown in the display provides the user with constant information about how reliable the measurement is. Thanks to the results-oriented view, the user can immediately implement further steps, e.g. confirm the location by acoustic means.
Different probe quantities are available:
5 sensors/10 sensors/15 sensors/20 sensors
